Multigas Monitor AneSure Mini

AneSure Mini can simultaneously measure anesthetic gas, ETCO2 and respiratory rate. Suitable for Emergency, Pre-hospital and Intra-hospital transport, Operating room as well as ICU.

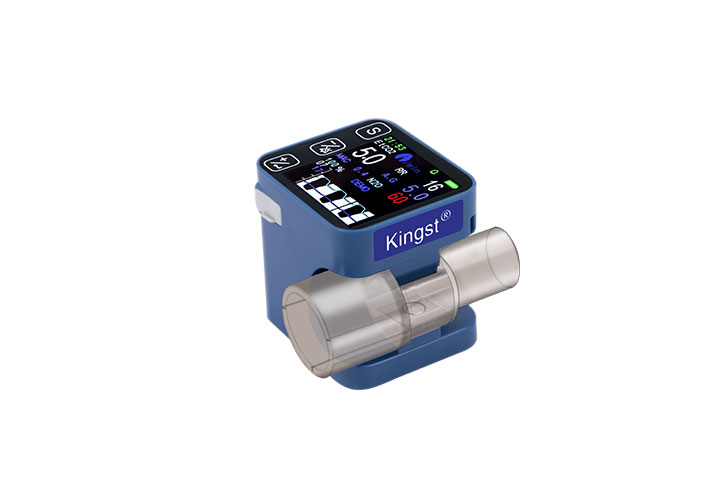

anesthetic agent analyzer

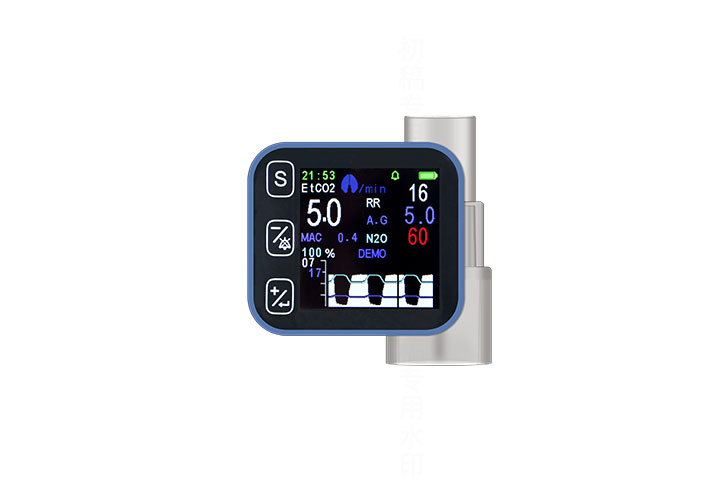

anesthetic gas analyzer

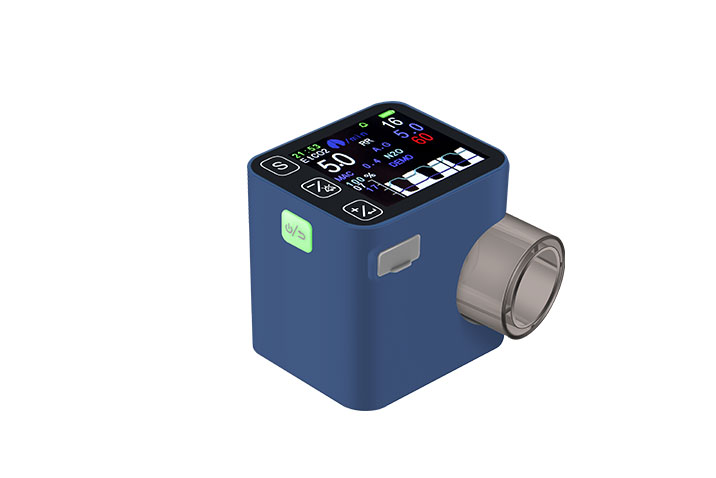

anesthetic gas monitor

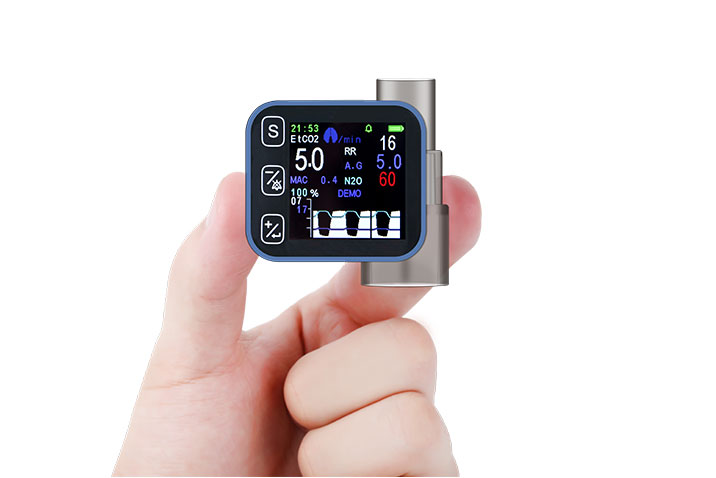

anesthetic gas analyzer monitor
ma3
mA3N Anesure mini 小儿适配器.PNG

Features of AneSure Portable Multigas Monitor AneSure Mini

01.
Portable And Lightweight

Suitable for emergency, pre-hospital and intra-hospital transfer, operating room, ICU, enhancing the safety of anesthesia

02.
Alarm For Data Overrun And Suffocation

Quick warm-up with the first value displayed in 5 seconds, and accurate readings displayed in 15 seconds. 24-hour trend graphs, not lost when power off

03.
Large Character Mode

The data can be clearly seen from 5 meters away;

Turn on the unit, and it is ready to use instantly with no need to calibrate;

Automatic atmospheric pressure compensation; Economical adapters reduce usage costs.

04.

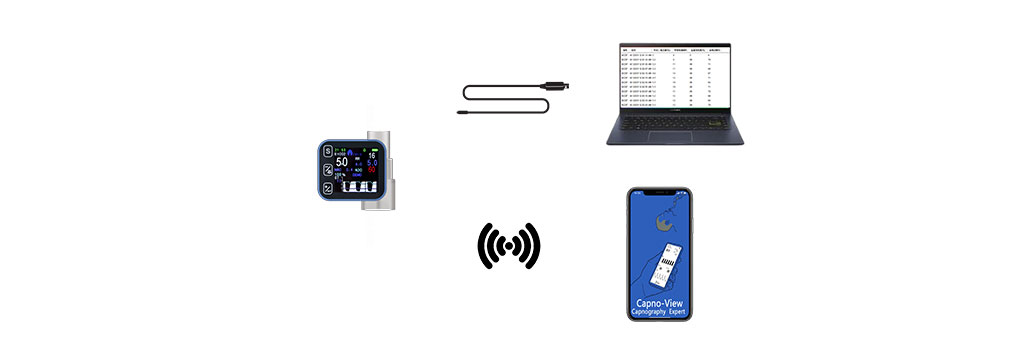

Data output via USB and Bluetooth (optional)

Wired and wireless transmission, convenient for data storage

05.
Firm And Durable

Suitable for various medical environments (field, helicopter, etc.)

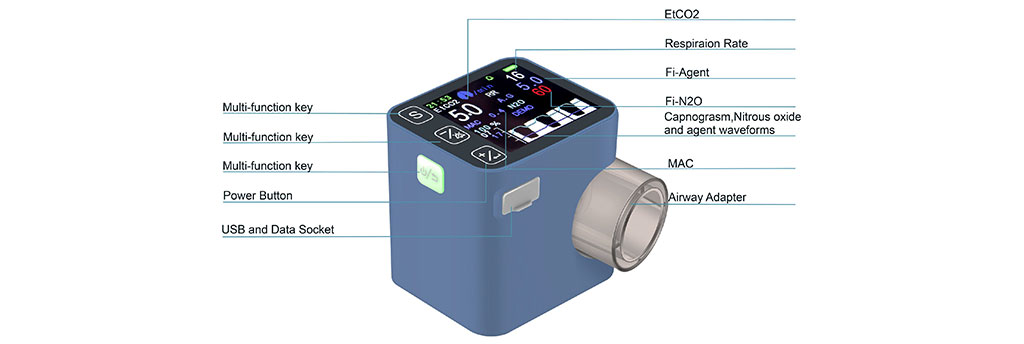

gas analyzer anesthesia machine
anesthesia machine oxygen analyzer

Specifications of AneSure Portable Multigas Monitor AneSure Mini

AC Input100V -240V, 50Hz/60 Hz to 5VDC Adapter with 5V type-C USBadapter Cable.
BatteryBuilt-in rechargeable lithium battery pack (3.7V, 1200mAH)
Temperature5 to +50℃
Humidity≤80%
Atmospheric pressure55 - 115 kPa
TechniqueNDIR (Non-dispersive infrared gas analysis)
Sampling ModeMainstream
EtCO2, FiCO2 measurement

Range: 0 – 150mmHg or 0 – 20kPa or 0 – 19.7% (v/v)

Accuracy: ±2mmHg for CO2 range 0 - 40mmHg

±5% for CO2 range from 41 - 70mmHg

±8% for CO2 range from 71 - 100mmHg

±10% Over 100mmHg

Update/Averaging TimeOption of every breath or 10, 20 or 30 seconds
FiN2O/EtN2O measurement

Range: 0-100%

Accuracy: ± (2 vol% + 2% of reading)

FiHAL/EtHAL, FiENF/EtENF, FiISO/EtISO measurement

Range: 0-12%

Accuracy: 0-8%: ± (0.15 vol% + 5% of reading); 8-12%: unspecified

FiSEV/EtSEV measurement

Range: 0-15%

Accuracy: 0-10%: ± (0.15 vol% + 5% of reading); 10-15%: unspecified

FiDES/EtDES measurement

Range: 0-25%

Accuracy: 0-18%: ± (0.15 vol% + 5% of reading); 18-25%: unspecified

All FiAG

Update: every 2-3 breath

Trends: 24 hours on Screen Trend and Numeric

Atmospheric Pressure CompensationAuto-compensation for atmospheric pressure variation
Respiration Rate

Range: 3 - 150 breaths/minute

Accuracy: ±1% of reading or ±1 breaths/min whichever is greater

Rise time

CO2 is less than70ms;

N2O is less than300ms; Anesthetic gases (halothane, enflurane, isoflurane, sevoflurane, or desflurane) are less than 300ms

Warm Up Time<15 seconds
Agent threshold0.2%, When an agent is identified, concentrations will be reported evenbelow 0.2% as long as apnea is not detected
Alarm limits

Apnea alarm limits:15-40 sec

High alarm limits EtCO2/ FiCO2:22-150mmHg

Low alarm limits EtCO2/ FiCO2: 00-60mmHg

High alarm limits FiHAL/EtHAL, FiENF/EtENF, FiISO/EtISO:1.0-8.0%

Low alarm limits FiHAL/EtHAL, FiENF/EtENF, FiISO/EtISO:0-6.5%

High alarm limits FiSEV/EtSEV:1.0-10.0%

Low alarm limits FiSEV/EtSEV:0-6.5%

High alarm limits FiDES/EtDES:1.0-18.0%

Low alarm limits FiDES/EtDES: 0-6.5%

High alarm limits FiN2O/EtN2O:26-100%

Low alarm limits FiN2O/EtN2O: 01-78%

The high alarm limits of respiration rate:4-150 breaths/min

The low alarm limits of respiration rate:0-140 breaths/min

Size38 x 42 x 44mm (W x H x D)
Weight80g (including lithium battery and adult airway adapter)
Airway Adapter

Dead Space: 5ml (Adult/Pediatric)

 1ml (Neonate)

Warranty & Maintenance/ CalibrationOne year warranty on Main Unit and Lithium Ion Rechargeable Battery


Application Scenarios of AneSure Portable Multigas Monitor AneSure Mini

  • Portable, accurate and real-time anesthetic multi-gas monitor

  • AneSure-Mini can simultaneously measure anesthetic gas, ETCO2 and respiratory rate. It is suitable for Emergency, Pre-hospital and Intra-hospital transport, Operating room as well as ICU.

  • It has an alarm function, which will alarm when the measured value reaches the alarm limits or when suffocation occurs.

  • The first data can be obtained within 5 seconds after power-on, and full accurate data can be obtained within 15 seconds; the 24-hour Etco2 graph will not be lost when power off.

  • It has a large-character display mode, and the data can be clearly seen from more than 5 meters away.

  • It is ready to use after power on.

  • With simple maintenance and sturdy structure, suitable for various harsh environments.
