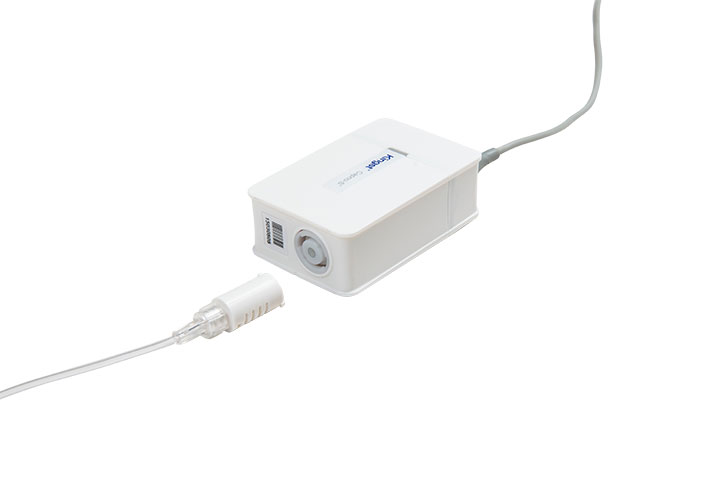

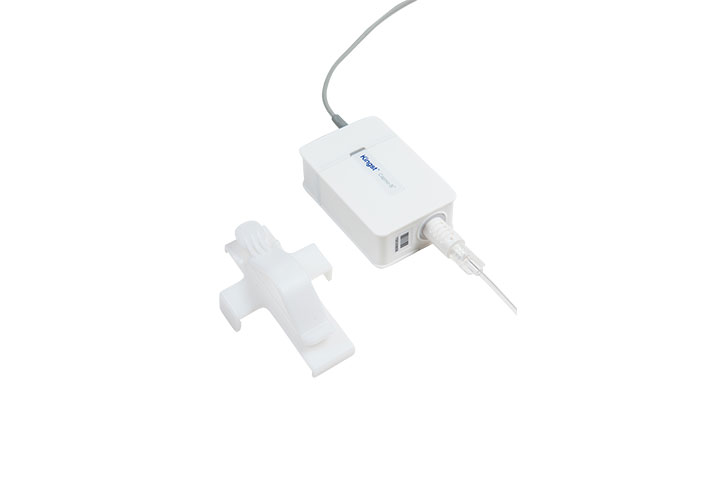

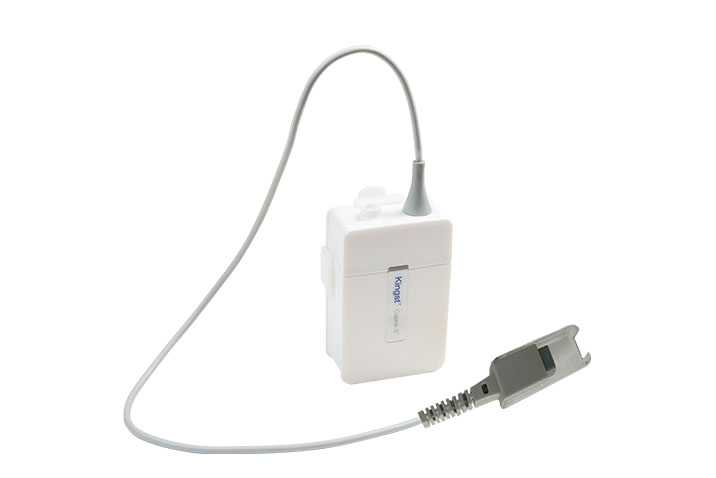

CO2 Sidestream Module Capno-S+

A side stream etco2 sensor, accurate and durable, suitable for various complex environments. Compatible with multiple protocols. Plug and play, no zero calibration required. Stable and durable.

capnography sidestream
sidestream capnography
side stream capnography
sidestream capnometer
sidestream end tidal co2 monitoring

Feature of CO2 Sidestream Module Capno-S+

01.
High Precision

Temperature pressure compensation, timing and self-calibration functions, full-range calibration, to ensure accurate measurement within the range of 0-20%. Plug and play, no circuit inside the host, just a serial port is enough.

02.
Low Energy Consumption

Suitable for battery power supply. It is suitable for adults, children and newborns, with excellent cost performance and low cost. Ultra-long life, ultra-low noise sampling pump, power on within 4 seconds can be measured data.


03.
Automatic Atmospheric Pressure Compensation

There is an atmospheric pressure sensor inside, which is suitable for various altitude ranges. And there is Built-in interference gas compensation algorithm.

04.
Reliable EtCO2 OEM Solutions

A variety of protocols, so that your products quickly upgrade assembly.

Specifications of CO2 Sidestream Module Capno-S+

TechniqueNon-dispersive infrared gas analysis, multi-channel infrared detector, no moving parts
Storage condition-40°C to 70°C,<93% RH, non-condensing
Working condition5°C to 40°C, 30 to 75% RH, non-condensing
Circumstance pressure55-115 KPa
Power demand5V ± 5% (max ripple 200 mVp-p)
Power consumptionUsual typical value 120 mA during deviation and calibration, typical value 280 mA
lnterfaceRS-232/Standard E-8-1, 38.4 kBaud,10 ms data interval (KM) or customization
CO2 measurement range0-150 mmHg, 0-20 kPa, 0-19.7%
CO2 resolution0.1mmHg
co2 measurement accuracy

0 - 40 mmHg ± 2 mmHg

41 - 70 mmHg ± 5% of reading

71 - 100 mmHg ± 8% of reading

101 - 150 mmHg ± 10% of reading

Respiration rate3-150 bpm
Respiration rate accuracy±1% of reading or ±1 rpm whichever is greater
Anesthetic gas compensationN2O, O2, Agent (HOST supplied)
Barometric PressureBarometric Pressure 400 to 860 mm Hg automatic
Warm-up timeTo reach designed deviation 97% within 8s, to reach designed deviation within 2 min.
Rise time<200ms
CalibrationNo routine user calibration required
Flow controlRange: 50-250ml/min adjustable Accuracy: <±20%


Application Scenarios of CO2 Sidestream Module Capno-S+

  • High signal-to-noise ratio

Capno-S+ is a side stream CO2 module, equipped with high-quality Multi-Channel Narrowband Filters, IR Light Source, Well-designed Hardware Circuit and Software Algorithms to achieve gas concentration measurement with high signal-to-noise ratio;

  • Long continuous working time

For side stream modules, there are built-in long-life sampling pumps, ensuring a one-way flow of exhaled air; and high-quality filter that can work for a long time even in high temperature environment.

  • Plug-and-play

It can be used in conjunction with a multi-parameter monitor. The monitor only needs one interface, which can be connected to the module for use.

  • Atmospheric pressure compensation

There is an internal atmospheric pressure sensor, which can automatically adjust the atmospheric pressure and suitable for various altitude ranges and harsh environments;

  • OEM solutions

We provide the reliable carbon dioxide OEM solutions, with multiple protocols, so that products can be quickly upgraded and assembled.
