Capnograph and Oximeter Capno-H

A handheld carbon dioxide monitor with automatic atmospheric pressure compensation, high accuracy, suitable for various complex environments.

handheld etco2 monitor
capnometer handheld
handheld capnometer
t4f  04
1
12

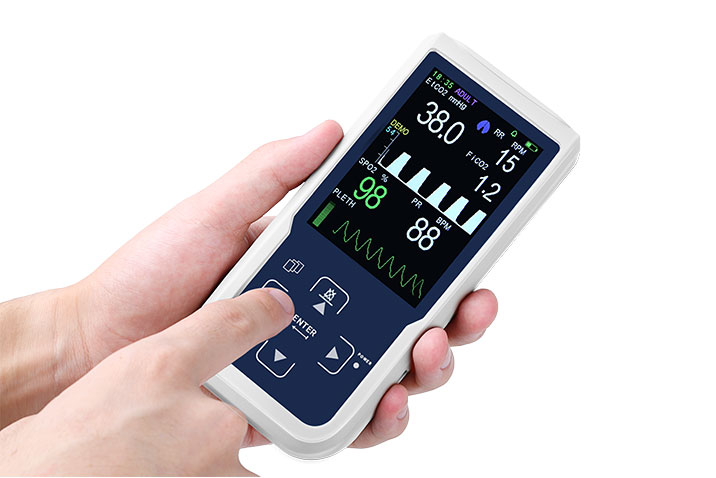

Features of Kingst Handheld Capnograph and Oximeter Capno-H

01.
Certification

With FDA certification, CE certification, 1SO9000 certification, the product conforms to RoHS, ETCO2 module conforms to FDA certification

02.
Compact and Lightweight

3.5 inch LCD display, 380g weight

03.
Technique

Using non-scattering infrared gas analysis technology

04.
Unit

kpa, %, mmHg

05.
Air pump flow

The air pump flow is adjustable, its range: 50cc/min---250cc/min

06.
Safety

Patented filter to ensure continuous machine work without obstacles

07.
Software Support

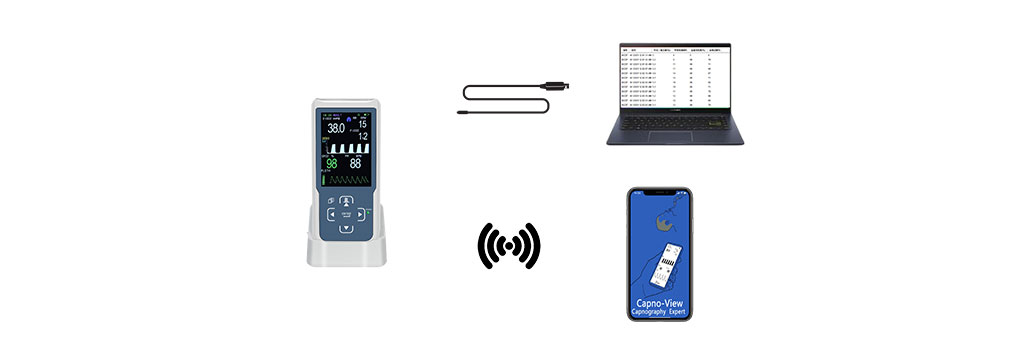

Data can be observed in real time through APP


capnometer handheld
handheld etco2 monitor

Specifications of Kingst Handle Capnograph and Oximeter Capno-H

AC Input100V - 240V, 50Hz/60 Hz to 5VDC Adapter with 5V type-CUSB adapter Cable. Optional Vehicle 12V to 5V Type-CUSB Charger Lead.
BatteryBuilt-in rechargeable lithium battery pack (3.7V, 3500mAH)
Temperature5 to +40 ℃
Humidity30-75%
Atmospheric pressure86~106kpa
EtCO2/FiCO2 Range0~150mmHg
Accuracy±2mmHg for CO2 range 0 - 40mmHg;

±5% for CO2 range from 41 - 70mmHg;

±8% for CO2 range from 71 - 100mmHg;

Over 100mmHg ±10%

Respiration Rate Range3~150 breaths/minute
Accuracy±1% of reading or ±1 rpm whichever is greater
Size72 x 155 x 38mm (W x H x D)
WeightWeight on Airway ETT/LMA<25g. Monitor 380g
Display size3.5 inches


Application Scenarios of Kingst Handheld Capnograph and Oximeter Capno-H

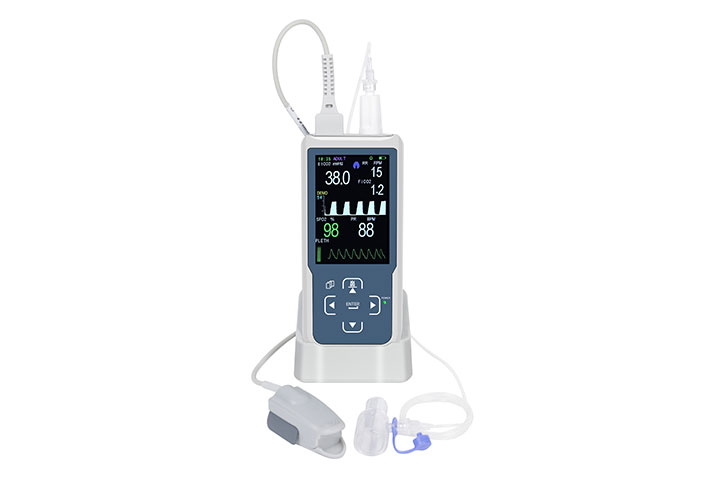

  • Two modes are available: sidestream and mainstream.

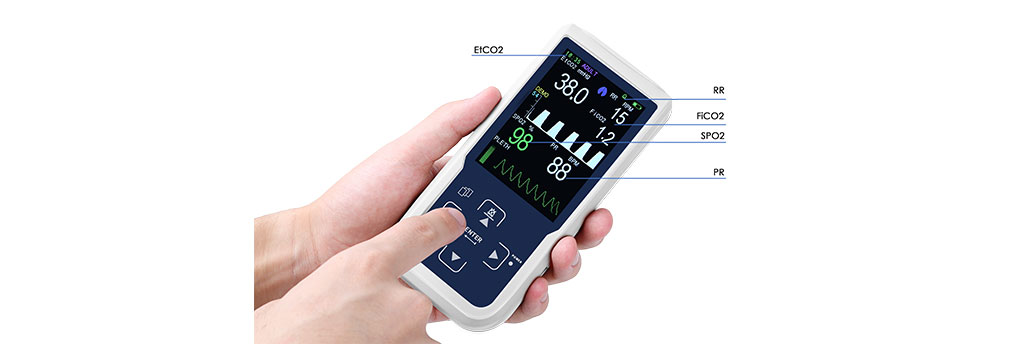

  • Capno-H can simultaneously measure blood oxygen saturation, pulse rate, ETCO2 and respiratory rate. Its lithium battery can support continuous work at full load for more than 10 hours; Capno-H is available for short and long-term monitoring of adults, pediatrics, and infants. It is ready to use after power on and no need to calibrate.

  • Capno-H has automatic atmospheric pressure compensation that can provide accurate monitoring whether in plateau or helicopter rescue.

  • With selected interference gas, pulmonary pressure and body temperature compensation to achieve the higher precision.

  • With simple maintenance and sturdy structure, Capno-H is suitable for various harsh environments.
