Mainstream Multigas Module AneSure-M

Mainstream Anesthesia Multi-Gas Module, simultaneously measure the concentration waveform and data of carbon dioxide, nitrous oxide and anesthetic gas, as well as respiratory rate. The types of anesthetic gas measured include halothane, enflurane, isoflurane, sevoflurane and desflurane. The user can manually select the type of anesthetic gas.

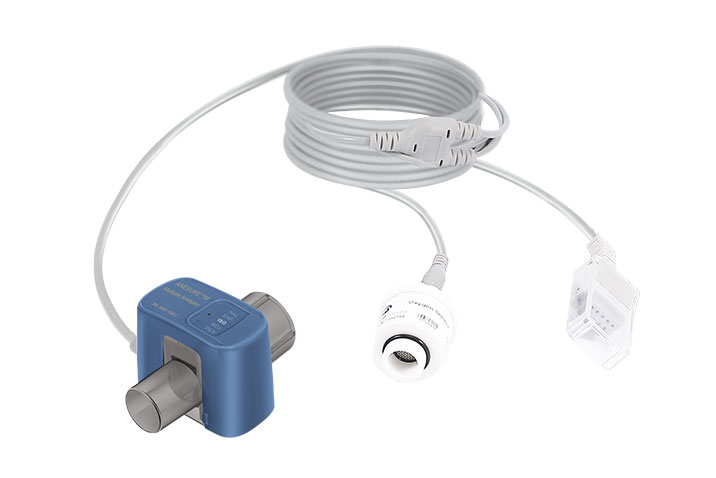

end tidal carbon dioxide
mA1 多气体主流成人适配器.PNG
mA1N 多气体主流小儿适配器.PNG

Features of Mainstream Multigas Module AneSure-M

01.
Reliable multi gas OEM solution

Equipped With Oxygen Battery. Reliable multi gas OEM solution, compatible with a variety of protocols, so that your products can be quickly upgraded and assembled.

02.
Mainstream Mode

Can simultaneously measure the concentration waveform and data of carbon dioxide, nitrous oxide and anesthetic gas, as well as respiratory rate. The types of anesthetic gas measured include halothane, enflurane, isoflurane, sevoflurane and desflurane. The user can manually select the type of anesthetic gas.

03.
Plug And Play

The host does not need internal circuit, just a serial port. The data can be measured within 4 seconds after power on. It is suitable for adults, children and newborns, with excellent cost performance and low cost.

04.
Automatic Pressure Compensation

There is an atmospheric pressure sensor inside, which is suitable for various altitude ranges. High-precision. Careful selection of infrared devices, hardware design and software algorithm, to achieve high signal-to-noise ratio, to ensure the measurement accuracy for temperature range of - 5-50 °C and in the range of 0 - 20%.

Specifications of Anesthesia Multi-gas Detector AneSure™-M


Working condition5°C to 50°C, 10 to 90% RH, noncondensing
Circumstance pressure55-115kpa
Power consumption<180 mA
InterfaceRS-232/Standard E-8-1, 38.4 kBaud,10 ms data interval (KM) or customized communication protocol
EtCO2, FiCO2 measurement

range:0-150 mmHg, 0-20 kPa, 0-19.7%

Accuracy:±2mmHg for CO2 range 0 - 40mmHg

±5% for CO2 range from 41 - 70mmHg

±8% for CO2 range from 71 - 100mmHg

±10% Over 100mmHg

FiN2O, EtN2O measurement

Range: 0-100%

Accuracy: ± (2 vol% + 2% of reading

FiHAL/EtHAL, FiENF/EtENF, FiISO/EtISO measurement

Range: 0-12%

Accuracy: 0-8%: ± (0.15 vol% + 5% of reading)

8-12%: unspecified

FiSEV, EtSEV measurement

Range: 0-15%

Accuracy: 0-10%: ± (0.15 vol% + 5% of reading)

10-15%: unspecified

FiDES, EtDES measurement

Range:0-25%

Accuracy: 0-18%: ± (0.15 vol% + 5% of reading)

18-25%: unspecified

Gas compensationO2 (HOST supplied), or automatically compensation if O2 equipped
Barometric Pressure

Having barometric pressure sensor and automatically compensation

Warm-up time

10 seconds reach designed deviation 97%,

20 seconds reach designed deviation.

Rise times (t10- 90 %)

CO2:<70ms

N2O and AGENT:<300ms

CalibrationNo need to calibrate
ZeroImplement when replacing adaptor

Application Scenarios of Anesthesia Multi-gas Detector AneSure™-M

  • Equipped with Oxygen battery, reliable multi gas OEM solution, compatible with a variety of protocols, so that your products can be quickly upgraded and assembled.

  • Mainstream mode, can simultaneously measure the concentration waveform and data of carbon dioxide, nitrous oxide and anesthetic gas, as well as respiratory rate. The types of anesthetic gas measured include halothane, enflurane, isoflurane, sevoflurane and desflurane. The user can manually select the type of anesthetic gas.

  • Plug and play, the host does not need internal circuit, just a serial port. The data can be measured within 4 seconds after power on. It is suitable for adults, children and newborns, with excellent cost performance and low cost.

  • Automatic pressure compensation. There is an atmospheric pressure sensor inside, which is suitable for various altitude ranges. High-precision. Careful selection of infrared devices, hardware design and software algorithm, to achieve high signal-to-noise ratio, to ensure the measurement accuracy for temperature range of - 5-50 °C and in the range of 0 - 20%.
