Sidestream Multigas Module AneSure-S

Side stream Anesthesia Multi-Gas sensor, can simultaneously measure the concentration waveform and data of CO2, N2O, anesthetic gases, as well as respiratory rate. The types of anesthetic gases measured include halothane, enflurane, isoflurane, sevoflurane and desflurane. The user can manually select the type of anesthetic gas.

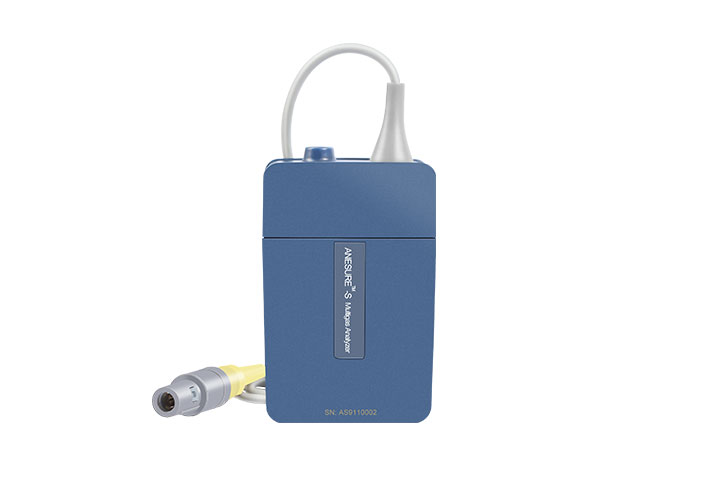

anesthetic gas detector

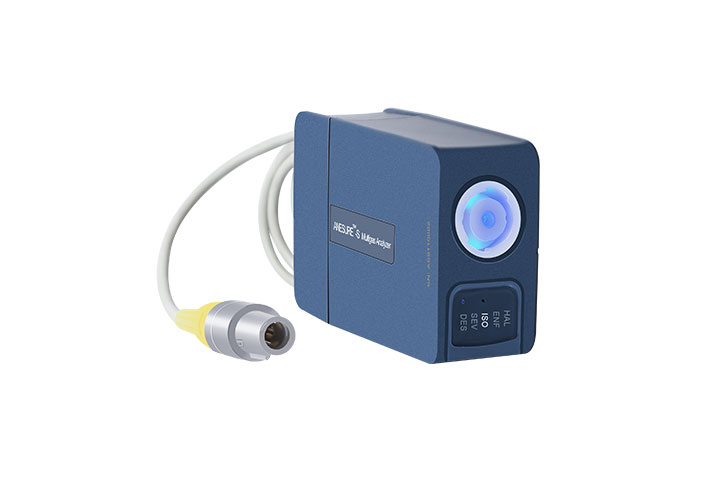

anesthetic gas module

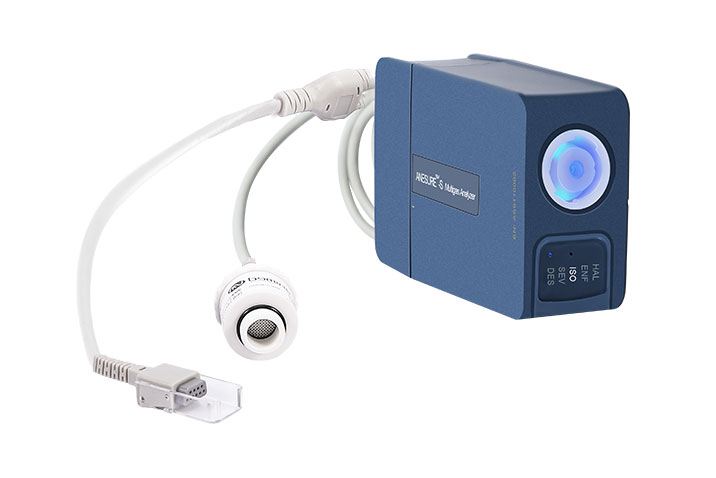

end tidal waveform capnography

Features of Anesthesia Multi-gas Detector AneSure™-S

01.
Reliable multi gas OEM solution

Reliable multi gas OEM solution. Equipped With Oxygen Battery. Compatible with a variety of protocols, so that your products can be quickly upgraded and assembled.

02.
Side Stream Mode

Can simultaneously measure the concentration waveform and data of CO2, N2O,Anesthetic gas, as well as respiratory rate. The types of anesthetic gases measured include halothane, enflurane, isoflurane, sevoflurane and desflurane. The user can manually select the type of anesthetic gas.

03.
Plug And Play

The host does not need internal circuit, just a serial port. The sampling pump with super long service life can measure data within 4 seconds after power on. Suitable for adults, children and newborns. Advanced filter, can also be used in heavy humidity environment for a long time, reducing the cost of use.

04.
Automatic Pressure Compensation

There is a built-in atmospheric pressure sensor, which is suitable for various altitude ranges.

05.
High-precision

Careful selection of infrared devices, hardware design and software algorithm, to achieve high signal-to-noise ratio, to ensure the measurement accuracy for temperature range of - 5-50 °C and in the range of 0 - 20%.

Specifications of Anesthesia Multi-gas Detector AneSure-S


Working condition5°C to 50°C, 10 to 90% RH, non-condensing
Circumstance pressure55-115kpa
Power consumption<180 mA
InterfaceRS-232/Standard E-8-1, 38.4 kBaud,10 ms data interval (KM) or customization
EtCO2, FiCO2 measurement

Range:0-150 mmHg, 0-20 kPa, 0-19.7%

Accuracy:±2mmHg for CO2 range 0 - 40mmHg

±5% for CO2 range from 41 - 70mmHg

±8% for CO2 range from 71 - 100mmHg

±10% Over 100mmHg

Respiration rate

Range: 3-150 BPM

Accuracy: ±1% of reading or ±1 rpm whichever is greate

FiN2O, EtN2O measurement

Range: 0-100%

Accuracy: ± (2 vol% + 2% of reading

FiHAL/EtHAL, FiENF/EtENF, FiISO/EtISO measurement

Range: 0-12%

Accuracy: 0-8%: ± (0.15 vol% + 5% of reading)

8-12%: unspecified

FiSEV, EtSEV measurement

Range: 0-15%

Accuracy: 0-10%: ± (0.15 vol% + 5% of reading)

10-15%: unspecified

FiDES, EtDES measurement

Range:0-25%

Accuracy: 0-18%: ± (0.15 vol% + 5% of reading)

18-25%: unspecified

Gas compensationO2 (HOST supplied), or automatically compensation if O2 equipped
Barometric Pressure

Having barometric pressure sensor and automatically compensation

Warm-up time

10 seconds reach designed deviation 97%,

20 seconds reach designed deviation.

Rise times (t10- 90 %)

CO2:<200ms

N2O, AGENT: <300ms

Flow control

Range: 50-250ml/min adjustable

Accuracy: <±20%

CalibrationNo need to calibrate
ZeroImplement when gas value's offset is observed, or when any unspecified accuracy message is displayed


Application Scenarios of Anesthesia Multi-gas Detector AneSure™-S

  • Reliable multi gas OEM solution. Equipped with Oxygen battery. Compatible with a variety of protocols, so that your products can be quickly upgraded and assembled.

  • Side stream mode, can simultaneously measure the concentration waveform and data of CO2, N2O,anesthetic gas, as well as respiratory rate. The types of anesthetic gases measured include halothane, enflurane, isoflurane, sevoflurane and desflurane. The user can manually select the type of anesthetic gas.

  • Plug and play, the host does not need internal circuit, just a serial port. The sampling pump with super long service life can measure data within 4 seconds after power on. Suitable for adults, children and newborns. Advanced filter, can also be used in heavy humidity environment for a long time, reducing the cost of use.

  • There is a built-in atmospheric pressure sensor, which is suitable for various altitude ranges.

  • High-precision. Careful selection of infrared devices, hardware design and software algorithm, to achieve high signal-to-noise ratio, to ensure the measurement accuracy for temperature range of - 5-50 °C and in the range of 0 - 20%.
