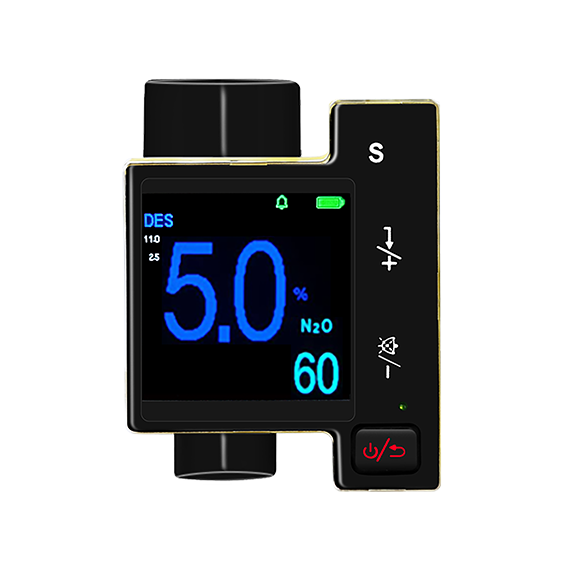

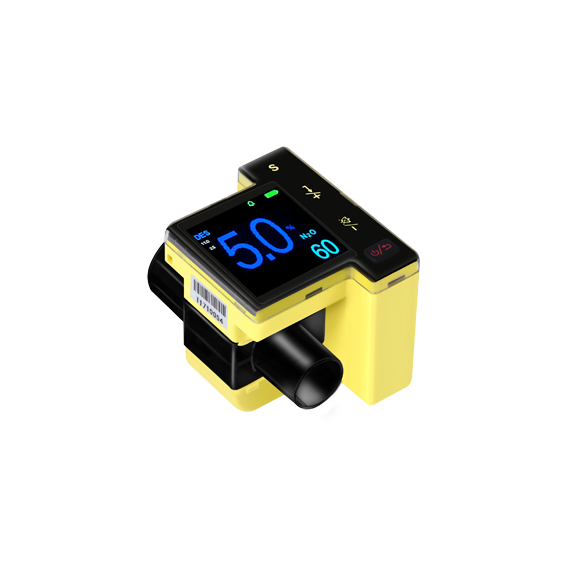

This new anesthesia gas monitor is specifically designed to measure the concentration of anesthetic agents output from vaporizer units in real time. It accurately detects commonly used volatile anesthetics such as isoflurane, sevoflurane, and desflurane using high-precision infrared analysis technology, ensuring that the actual output concentration aligns with the set values. By providing continuous monitoring of vaporizer performance, it helps clinicians identify dosage deviations or equipment malfunctions promptly. This device is well-suited for use in operating rooms, anesthesia equipment maintenance, and educational or research settings, serving as a valuable tool to enhance the safety and controllability of the anesthesia process.
Easy-to-read large-character interface for quick and clear monitoring in clinical environments.
Continuously displays dynamic changes in anesthetic agent concentration from the vaporizer.
Environmentally friendly and cost-effective with a reusable sensor adapter design.
Suitable for various medical environments (field, helicopter, etc.)
| AC Input | 100V -240V, 50Hz/60 Hz to 5VDC Adapter with 5V type-C USBadapter Cable. |
| Battery | Built-in rechargeable lithium battery pack (3.7V, 1200mAH) |
| Temperature | 5 to +50℃ |
| Humidity | ≤80% |
| Atmospheric pressure | 55 - 115 kPa |
| Technique | NDIR (Non-dispersive infrared gas analysis) |
| Sampling Mode | Mainstream |
| Update/Averaging Time | Option of every breath or 10, 20 or 30 seconds |
| N2O measurement | Range: 0-100% Accuracy: ± (2 vol% + 2% of reading) |
| HAL, ENF, ISO measurement | Range: 0-12% Accuracy: 0-8%: ± (0.15 vol% + 5% of reading); 8-12%: unspecified |
| SEV measurement | Range: 0-15% Accuracy: 0-10%: ± (0.15 vol% + 5% of reading); 10-15%: unspecified |
| DES measurement | Range: 0-25% Accuracy: 0-18%: ± (0.15 vol% + 5% of reading); 18-25%: unspecified |
| All FiAG | Update: every 2-3 breath Trends: 24 hours on Screen Trend and Numeric |
| Rise time | N2O is less than300ms; Anesthetic gases (halothane, enflurane, isoflurane, sevoflurane, or desflurane) are less than 300ms |
| Warm Up Time | <15 seconds |
| Agent threshold | 0.2%, When an agent is identified, concentrations will be reported evenbelow 0.2% as long as apnea is not detected |
| Alarm limits | Apnea alarm limits:15-40 sec High alarm limits HAL, ENF, ISO:1.0-8.0% Low alarm limits HAL, ENF, SO:0-6.5% High alarm limits SEV:1.0-10.0% Low alarm limits SEV:0-6.5% High alarm limits DES:1.0-18.0% Low alarm limits DES: 0-6.5% High alarm limits N2O:26-100% Low alarm limits N2O: 01-78% The high alarm limits of respiration rate:4-150 breaths/min The low alarm limits of respiration rate:0-140 breaths/min |
| Size | 44 x 44 x 55mm (W x H x D) |
| Weight | 80g (including lithium battery and adult airway adapter) |
| Airway Adapter | Dead Space: 5ml 1ml (Neonate) |
| Warranty & Maintenance/ Calibration | One year warranty on Main Unit and Lithium Ion Rechargeable Battery |
