Patient Monitor (with ETCO2) KM2010A

12.1-inch high-brightness full-view color LCD, optional touch screen, can display up to 12 waveforms at the same time. The user can choose a variety of display interface, free and flexible. Suitable for adults, children and newborns.

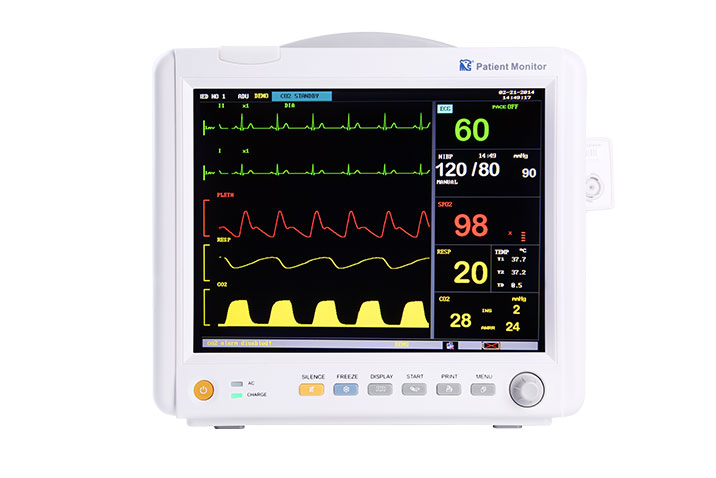

etco2 measures

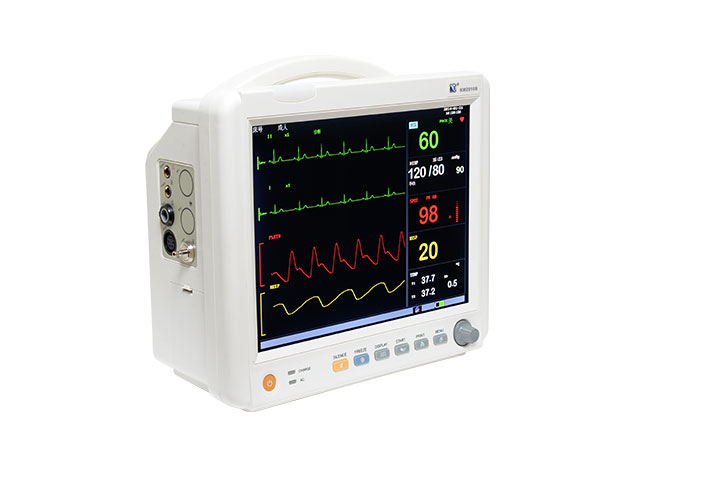

etco2 device

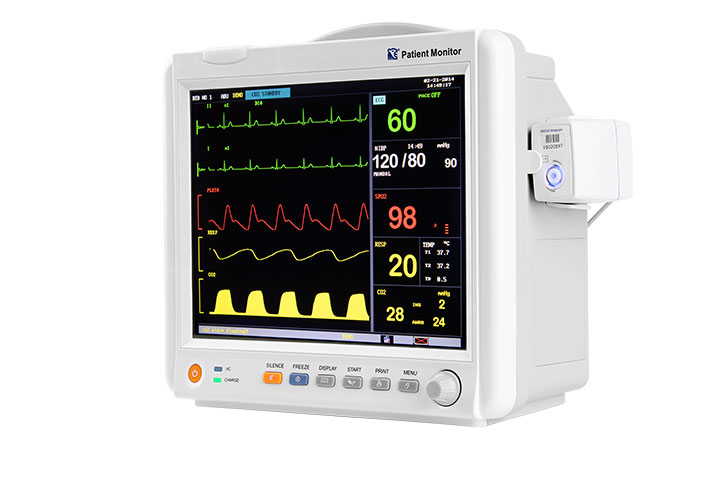

etco2 machine

Features of Kingst Multi-parameter Patient Monitor (with ETCO2) KM2010A

01.
12.1 Inches High Brightness Full View Color LCD

With touch screen, can display up to 12 waveforms at the same time.

02.
User Can Choose A Variety Of Display Interface

Free and flexible

03.
Suitable For Adults

Children and newborns.

04.
Humanized design of sound and light alarm.

Reflect the alarm level through the light characteristics of the alarm light and the characteristics of the alarm sound

05.
ECG anti high frequency electrotome

Anti-defibrillation.

06.
ST segment monitoring

Arrhythmia analysis, pacing analysis, drug concentration calculation, etc.

07.
Power-down memory function

Store a week's trend chart and data table for inspection and analysis, save and playback ECG waveform at any time.

08.
Built-in battery ensures continuous monitoring

Rechargeable lithium battery for long time use

09.
Microfluidic mode

Printing options.


10.
It is convenient

For the central monitoring system to form a monitoring network. Convenient multi style bracket installation (optional).

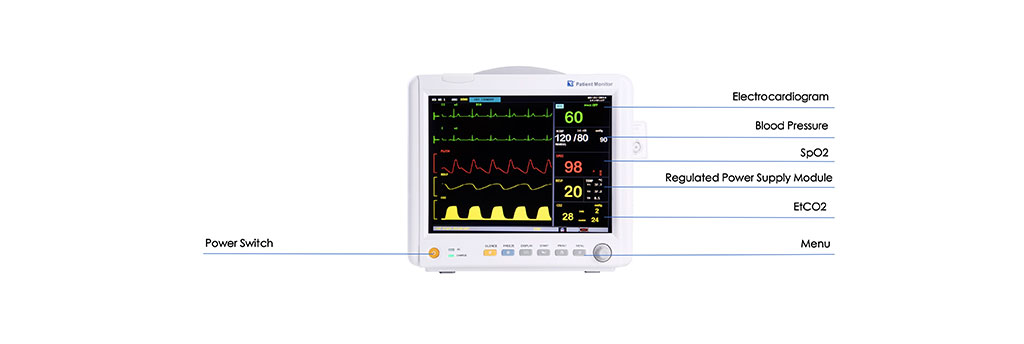

Patient Monitor With Capnography

Specifications of Kingst Multi-parameter Patient Monitor (with ETCO2) KM2010A


ECG, NIBP, SpO2, PR, temperature, RR, Etco2 (KM2010B does not have this parameter)
Power voltage:AC220V±22V, 50Hz±1Hz, Output Power: 100VA
Operating environment
Temperature5~40℃
Relative humidity30~75%(Non-condensing)
Atmospheric pressure86~106kpa
ECG
Electrocardiogram five leadsR, L, F, N, C
Lead selectorI; II; III; avR; avL; avF; V
Heart Rate Range20-300bpm
ST-segment:
monitoring range-2mv~2mv
NIBP:
Systolic pressure40-280(A),40-220(P),40~135(N)mmHg
Diastolic blood pressure10-280(A),10-160(P),10~105(N)mmHg
Mean arterial pressure20-240(A),20-170(P),40~110(N)mmHg
SpO2 Monitoring range0-100%
PR Monitoring range20-300bpm
RR monitoring range7-150bpm(In CO2 mode:3-120bpm)
Body temperature monitoring range29℃~45℃
End-tidal carbon dioxide (optional)
Carbon dioxide monitoring range0-150mmHg/0-20kpa/0~20%
Gas sampling flow 50-250cc/min (optional)
Dimension320(W)×290(H) ×160(D)
Net weight6.6Kg
Display size12.1 inches/8 inches


Application Scenarios of Kingst Multi-parameter Patient Monitor (with ETCO2) KM2010A

  • 12.1 inches high brightness full view color LCD, with touch screen, can display up to 12 waveforms at the same time.

  • User can choose a variety of display interface, free and flexible.

  • Suitable for adults, children and newborns.

  • Humanized design of sound and light alarm.

  • ECG anti-high frequency electrotome, anti-defibrillation.

  • ST segment monitoring, arrhythmia analysis, pacing analysis, drug concentration calculation, etc.

  • Power down storage function, can store a week's trend chart and data table for inspection and analysis, save and playback ECG waveform at any time.

  • Built in battery ensures continuous monitoring.

  • Microfluidic mode, printing options.

  • It is convenient for the central monitoring system to form a monitoring network. Convenient multi style bracket installation (optional).
